Operating Voltage Range 15 to 32Vdc Maximum Standby Current 200µA at 24Vdc (no communications) / 300μA at 24Vdc ( LED blink enabled, once every 5s) Led Current 3.5mA at 24Vdc Remote Out put Voltage 22.5Vdc @ 24Vdc Remote Output Current 10.8mA @ 24Vdc Additional loop resistance using the B501AP typ 20mohm (max 30 mohm)
Operating Voltage Range 15 to 28.5Vdc Isolation Current 15mA at 24Vdc Maximum Continuous Current 1A (Switch Closed) Additional Loop Resistance typ 80 mohm @24V (max 170mohm @ 15V)

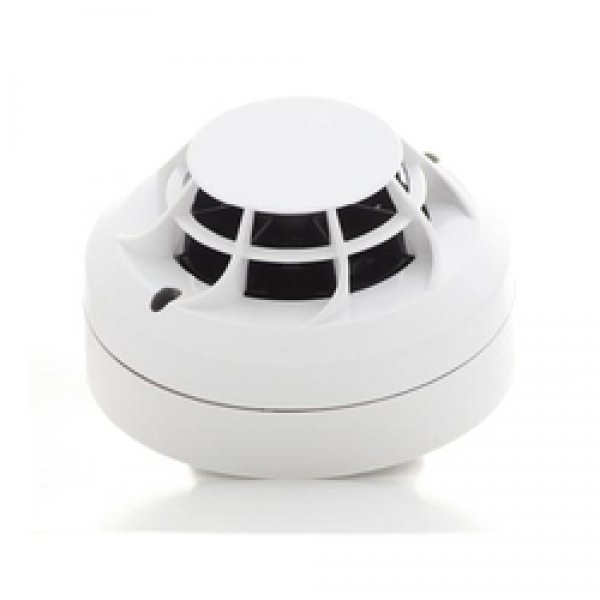

S200A incorporates major hardware and software technology driven developments. A completely new optical chamber design is proven in extensive testing to be more effi cient, less liable to false alarm due to dust and insects and less susceptible to fault in high air velocities or back pressure. Extensive hydrodynamic modelling has confi rmed the greater effi ciency of the new chamber and housing shape combination. Large-scale integration of the all-new electronics, through the fully automated surface mount PCB assembly, coupled with in-line testing through the manufacturing process, laser PCB cutting along with a completely new compound of plastic offers improved quality and reliability
